STEEL SERVICE CENTER SLITTING LINE - CUT-TO-LENGTH LINE PREMIUM SURFACE QUALITY GUARANTEEING STEEL SERVICE CENTER |
|
SLITTING LINE |
|
LINE VIEW |
RECOILING WITH HIGH TENSION |
|
AND STRAIGHT EDGE | |
|

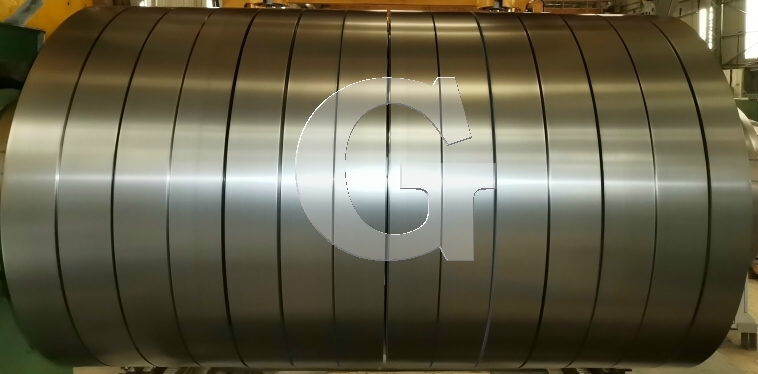

MULTS |
STRAIGHT MULT FLOW |
|
SLITTING KNIVES |

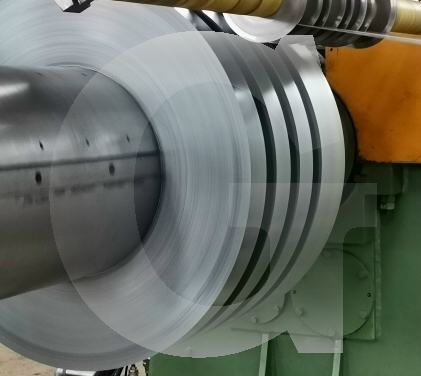

TENSIONED RECOILING |
| THICKNESS | 0,30 - 3,00 mm |
| WIDTH MAX | 1750 mm |
| ENTRY COIL WEIGHT MAX | 20 t |
| EXIT COIL WEIGHT MAX | 20 t |
| ENTRY COIL ID | 508- 610 mm |
| EXIT COIL ID | 508 mm |
| MULT WIDTH MIN | 30 mm |
CUT-TO-LENGTH LINE |
|
NON-STOP OPERATION BY ROTARY SHEAR |
SURFACE QUALITY AND FLATNESS CHECK |
| WITHOUT LOOPING PIT |
|
|
PAPER APPLICATION |
PVC APPLICATION |
| WITH STATIC ELECTRIC STICKING |
|
|
AIR-FLOATATION STACKING |
PRECISELY ALIGNED |
| WITHOUT SURFACE CONTACT |
STACKING AND PACKING |
|
2. QUALITY MATERIAL AUTO-STACKING |

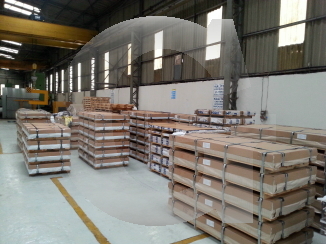

WAREHOUSING |
|
|
| THICKNESS | 0,30 - 3,00 mm |
| WIDTH | 500 - 2000 mm |
| PRECISON LEVELLER | 6-hi configuration roller casette leveller |
| SHEAR | rotary shear (no looping pit, non-stop) |
| SURFACE PROTECTION | pvc and paper application |
